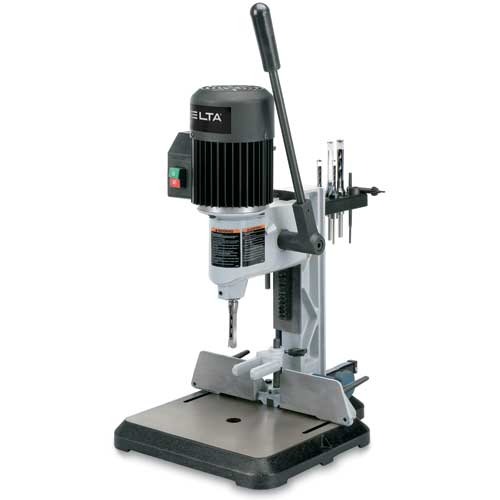

14-651 - 1/2 HP Mortiser

The frustration of mortising with a mallet and chisel are over. For precise, fast and accurate mortising, nothing beats the Delta Machinery Mortiser. Rigid cast iron construction and rack and pinion head ensure smooth consistent operation every time. Mortising head column can be turned 180° and remounted for off-table operation giving the machine virtually unlimited capacity.

Buy Now

Features

  • Easy and open access to drill chuck for bit changing
  • Large cast-iron base with center through hole
  • Adjustable fence and hold down
  • Adjustable dovetail way on mortising head
  • Gas-filled head-stabilizer
  • Height attachment adds 1 3/4 in. of additional capacity under head
  • Multi-position control handle
  • Adjustable depth stop

Specifications

  • Motor: 1/2 HP, 120V, 1 Phase, 60 Hz, 1,725 RPM
  • Chuck Capacity: 3/8 in.
  • Chisel Sizes: (5/8 in. max dia. shank) 1/4 in. x 1/4 in.; 5/16 in. x 5/16 in.; 3/8 in. x 3/8 in.; 1/2 in. x 1/2 in.
  • Stroke: max 5 in.
  • Under Head to Base: 9 3/8 in.
  • Chisel Center to Fence: 3 3/4 in.
  • Under Hold Down: 3 3/4 in.
  • Fence Size:
  • Each side: 2 15/16 in. x 5 13/16 in.
  • Overall: 13 5/8 in.
  • Table Size (includes post mounting area): 16 1/4 in. x 13 1/2 in.
  • Height: 30 in.
  • Width: 13.5 in.
  • Depth: 16.25 in.
  • Weight: 55 lbs.
  • Shipping Weight: 76 lbs.

Warranty

Delta Machinery 5 Year Warranty
