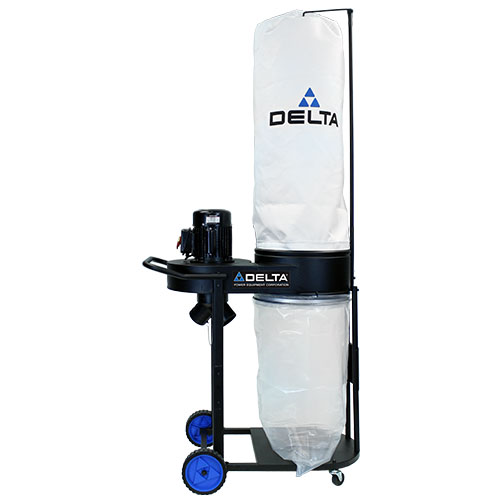

50-767 1 1/2 HP Motor Dust Collector

This 1 1/2 HP dust collector delivers powerful dust collection exactly where you need it and when you need it. With two stock 4” intake ports and easy portability you’ll be able to move around to all your machines and keep the shop dust free. The standard two micron filtration bags keep you safer and your shop cleaner. The powerful TEFC induction motor will be a workhorse in your shop allowing you to spend more time on projects and less time on sweeping up dust.

Buy Now

Features

  • The 50-767 includes motor and blower, support frame, 2 Micron Filtration Bag with Sewn-In Bag Ring, 6 mil plastic chip collection bag, (1) snap-in filter bag ring, (2) 4” intake ports, (2) swivel caster assemblies, two large 8” wheels, cord and plug
  • Sturdy steel base with four easy-gliding wheels for moving from machine to machine or for storing out of the way
  • Ergonomic handle makes moving the unit a breeze
  • Greater CFM and static pressure with the same HP as competitor models thanks to the engineered barrel cone-F5 design.
  • Standard 2 micron filtration bag keeps your shop safer and cleaner
  • Sewn in, snap-in filter bag ring is faster, easier and eliminates the need for cam-over-lock style clamps
  • Powerful TEFC induction motor for long-lasting, smooth performance with protection from damaging dust
  • 6 mil plastic chip collection bag shows you when the bag needs emptying

Specifications

  • Motor: 1 ½ HP max, 120/240V (Wired 120V), 60 Hz, 1 Phase
  • Impeller Diameter: 11 ½”
  • Maximum Static Pressure: 8” of water
  • Chip Bag Area: 2.4 cu. ft. (67 L)
  • Length: 42.5”
  • Shipping Weight: 106 lbs.
  • Max CFM: 1500 CFM
  • Standard Bag Filtration: 2 Micron
  • Filter Bag Area: 20.5 sq. ft., 1.9 sq. m.
  • Width: 24.5”
  • Height: 92.5”

Warranty

Delta Machinery 5 Year Warranty
