23-196 6 in. Variable Speed Grinder

23-196 6 in. Variable Speed Grinder

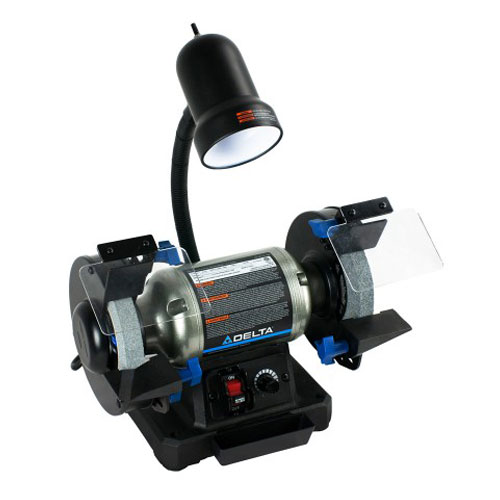

The Delta 6 in. Variable Speed Bench Grinder features variable speed control offering you convenience and versatility in your grinding, sharpening, buffing and polishing operations. The grinder features a 2 1/2 amp induction-type motor for powerful performance. It incorporates 2 different grits for sharpening and grinding. The left tool rest has a drill bit rest milled into the surface so you’ll get the correct angle on the tip at all times.

Buy Now

Features

  • The 23-196 6 in. Variable Speed Grinder has variable speed control offering you convenience and versatility in your grinding, sharpening, buffing and polishing operations
  • Upfront variable speed dial allows you to easily control speeds from 2,000 RPM to 3,400 RPM for a fine level of control depending on the materials you are working with
  • Features a 2 1/2 Amp induction-type motor for powerful performance
  • Incorporates two different grits for sharpening and grinding
  • The left tool rest has a drill bit rest milled into the surface so you’ll get the correct angle on the tip at all times
  • Two piece tool rests are independently adjustable to compensate for wheel wear and to achieve different angles
  • Water tray to help keep workpiece cool while grinding
  • Work light with a separate on/off switch and flexible goose neck provides illumination during set up and while grinding
  • Cast iron base for durability and reduces vibration during operation
  • Full-size safety shields are clear and have thumb screws for easy adjustment
  • Includes (1) 36 Grit Coarse Wheel, (1) 60 Grit Wheel, (4) rubber feet to help prevent movement, 2 safety shields, work light (40-Watt bulb not included), (2) fully-adjustable tool rests and diamond wheel dresser

Specifications

  • Motor: 2 1/2 AMP, 120 Volt, 1 Phase
  • Wheel Dimensions: 6 in. Diameter x 3/4 in. Thick
  • Wheel Grit: 36 Grit and 60 Grit Wheels
  • Assembled Depth: 11 in.
  • Assembled Height (not including light): 11 in
  • Tool Weight: 27.5 lbs. (Net); 31.9 lbs. (Gross)
  • Shaft Diameter: 1/2 in.
  • Wheel Speed: 2,000 to 3,400 RPM
  • Cord Length: 6 feet
  • Assembled Width: 14 1/2 in
  • Base Dimensions: 7 in. Depth x 9 in. Width

Warranty

Delta Machinery 5 Year Warranty
