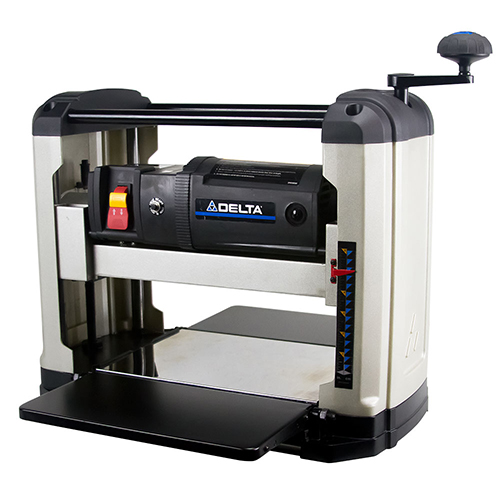

22-555 13 in. Portable Thickness Planer

The 22-555 13 inch portable thickness planer was designed for maximum stability, durability, and precision. The Four column design provides excellent stability for smooth, accurate planing over many years of use. The two polyurethane feed rollers make for a smooth no-slip grip on the workpiece and is positioned close to the cuttterhead to improve your workpiece’s finish. Don’t forget about the quick change knife system with dual edge disposable knives that let you change knives without difficult to use alignment jigs.

Buy Now

Features

  • Powerful 15A motor capable of handling the demands of a small shop.
  • Four column design provides excellent stability for smooth, accurate planing over many years of use
  • Quick change knife system with dual edge disposable knives lets you change knives without difficult-to-use alignment jigs
  • Adjustable Infeed and outfeed tables to better support long pieces and reduce snipe.
  • Reversible dust port allows you to collect chips from the right or left side of the planer.
  • Two polyurethane feed rollers for a no-slip grip on the workpiece; positioned close to the cutterhead to improve workpiece finish
  • Precision machined steel cutterhead for endurance and accuracy
  • Stainless steel bed reduces friction and improves motor efficiency
  • Overload button protects your motor from damage due to overheating.

Specifications

  • ​MOTOR: 15A, 120V, 60Hz, 1Ph
  • Max Stock Dimensions: 13 in. wide x 6 in. high
  • Max Depth of Cut: 3/32 in.
  • Cuts per minute: 18,800
  • Infeed/Outfeed table dimensions: 6 3/4 in. x 13 in. each
  • Number of Knives: 2
  • Dust Port Diameter: 2 1/16 in. Outer Diameter, 1 7/8 in. Inner Diameter
  • Weight: 58 lbs. Net
  • Motor Control: toggle with removable key
  • Min Stock Dimensions: 1/8 in. x 10 in.
  • Feed Rate: 28 ft/min
  • Infeed/Outfeed rollers: Nitrile synthetic rubber
  • Knife Type: Double edge reversible
  • Knife Size: 333 mm x 12 mm x 1.5 mm
  • Machine Dimensions: 21 5/8 in. x 23 5/8 in. x 20 1/8 in.

Warranty

Delta Machinery 5 Year Warranty
