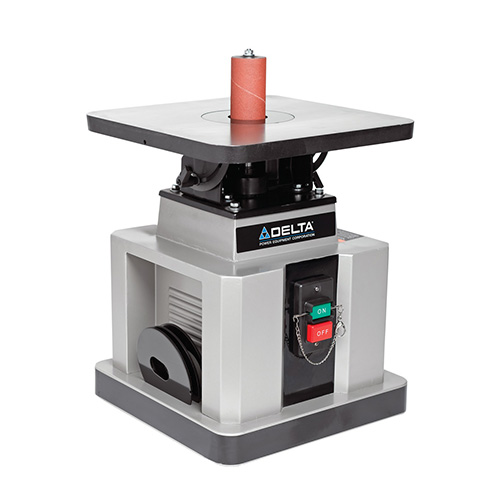

31-483 Heavy Duty Oscillating Bench Spindle Sander

The 31-483 heavy duty oscillating bench spindle sander is equipped with a powerful 1/2 Horse Power, 115 Volt motor with a 1,725 rotation per minute spindle speed and 29 oscillations per minute. The fully enclosed heavy duty steel frame construction is designed to keep vibration at a minimum. A heavy duty, steel table support and bevel system provides increased stability and long-lasting durability.

Buy Now

Features

  • Powerful 1/2 HP, 115V motor with 1,725 RPM spindle speed and 29 oscillations per minute
  • Fully enclosed, heavy duty steel frame construction for minimum vibration
  • 14 3/4 in. x 14 3/4 in. precision ground cast iron table
  • 15/16 in. oscillating action uses more of the sleeve, prolonging life of the sleeve
  • 0° to 45° tilting table design allows for accurate bevel sanding
  • Positive stop at 90° and large bevel scale for accuracy and convenience
  • Heavy duty, steel table support and bevel system provides increased stability and long-lasting durability
  • Twin locking handles for stability in bevel position
  • Smooth precision ball bearings support the main spindle and heavy duty worm and gear mechanism drives the oscillations
  • On-tool storage for all inserts, spindles and wrenches
  • Includes 5 interchangeable threaded spindles with 100 grit sanding sleeves (1/4 in., 1/2 in., 5/8 in., 1 1/2 in., and 2 in.), rubber drums on 1 1/2 in. and 2 in. spindles, 4 inserts, power lock-off pin, 2 1/4 in. to 4 in. dust port adaptor and 3 wrenches
  • CSA Listed

Specifications

  • Motor: 1/2 HP, 115V, 1 Phase
  • Speeds: 1,725 RPM, 29 OPM with 15/16 in. oscillation length
  • Table: 14 3/4 in. x 14 3/4 in., tilting, precision ground cast iron
  • Table Height: 18 in.
  • Opening Diameter for Inserts: 5 1/2 in.
  • Spindle Length: 5 1/2 in.
  • Dust Port: 2 1/4 in., included adaptor for up to 4 in.
  • Base Dimensions: 14 1/2 in. depth x 14 1/2 in. width
  • Dimensions (D x W x H): 14 3/4 in. x 14 3/4 in. x 18 in.
  • Shipping Dimensions: 17.32 in. x 16.93 in. x 20.87 in.
  • Weight: 66 lbs.
  • Shipping Weight: 73 lbs.

Warranty

Delta Machinery 5 Year Warranty
